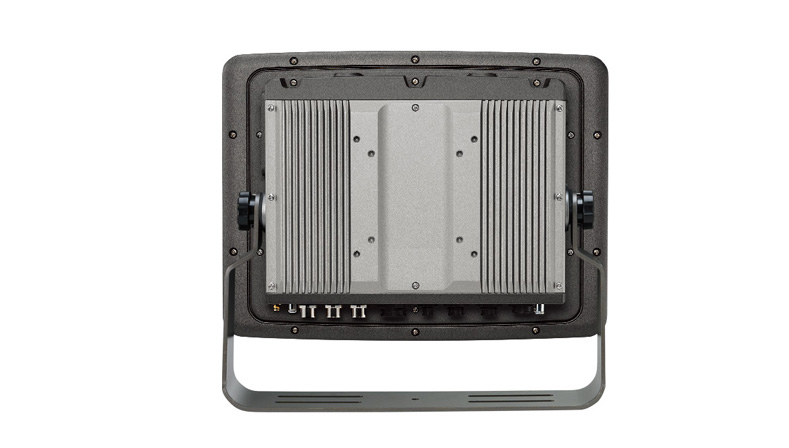

常規 | Cooling System : FanlessEnclosure : Die-cast aluminumMounting : Support VESA 75/100, Panel and stand mountingThree SMA Type antenna connectors of BT/Wi-Fi/WWANPower Input : 9~36VDC input with IgnitionPower Consumption : 26W typicalIngress Protection : IP65 (VMC4000 only front panel IP65)Dimension : 340mm (W) x 262mm (H) x 75.1mm (D) (13.38" x 10.31" x 2.96")Weight : 3.5Kg, 7.72Lb |
LCD 面板 | 12.1-inch TFT LCD panel with LED backlight1024 x 768 pixels (XGA)Brightness : 1300 cd/m2 (typical)Optional high brightness for sunlight-readable with 1200cd/m2Contrast ratio : 600 : 1 (typical)Life time: 100,000 hours |
觸摸屏傳感器 | 5-wire resistant touchAnti-glare coating surfaceTransmission rate : 81 ± 3% |
CPU & Chipset | Intel? Atom? D2550 1.86GHzIntel? ICH10R |
內存 | One 204-pin DDR3 1333MHz SO-DIMM slot (up to 4GB) |
存儲 | 1 x CFast1 x x 2.5" SATA SSD bay |
擴展 | 2 x Mini-PCIe socket (PCIe + USB) for WLAN/mSATA option1 x Mini-PCIe socket (USB) x 1 for WWAN option2 x OBDII module with J1939/J1708 for option |

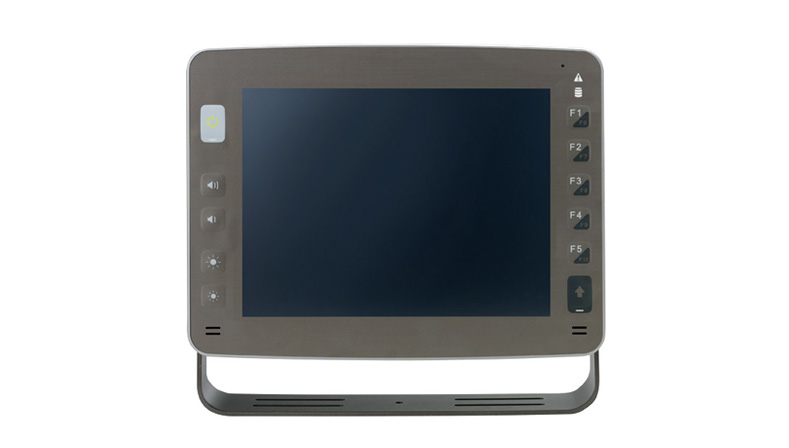

前置I/O 接口 | On screen display buttons x 5
Power on/off
Volume control (+/-)
Brightness control (+/-)Light sensor4 x LED indicators (Power on/off, Storage, Warning, Shift)F1~ F10 functions key2 x Built-in 2W speakers |
側面I/O 接口 | 1 x CFast card slotSystem reset buttonUSB 2.0 host type A connector |

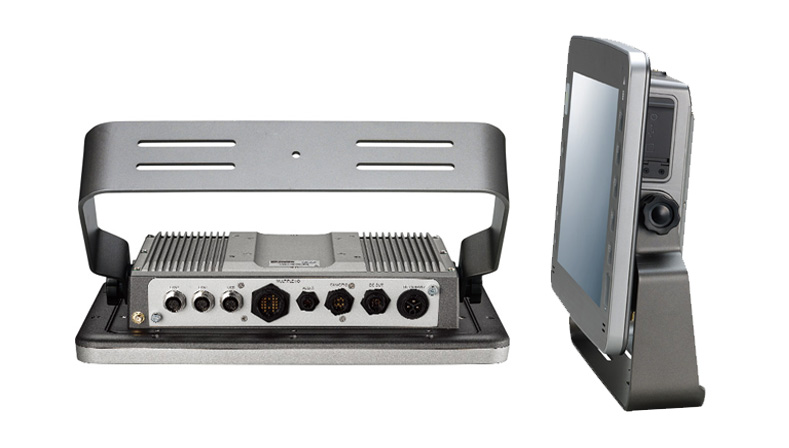

底部I/O 接口 | 1 x GPS Antenna SMA connector(On housing)1 x Mic-in, 1 x Line out2 x USB2.0/Ethernet (Host)2 x LAN interface for 10/100/1000Base-T1 x 9 ~ 36V, 3-pin (Power, Ignition, Ground), 10A1 x Circle Type 22pin Multi-I/O Connector
- 1 x COM (optional RS232/422/485; default RS232)
- 1 x COM (RS232 Tx/Rx)
- 1 x COM RS232 (with either 0, 5 or 12V @ 600mA on pin9)1 x Circle Type 10pin CONN
- 1 x OBDII module (option)
- 2 x DI and 2 x DO
- 1 x Circle Type 6pin CONN for 5V/12V DC-out |
通訊模塊 | 1 x GPS module1 x WLAN and Bluetooth combo module for optional1 x WWAN module for optional |
電源管理 | Selectable boot-up & shut-down voltage for low power protectionHW design ready for 8-level delay time on/off at user's self configurationPower on/off ignition, software detectableSupport S4 suspend mode; wake on RTC/SMS |
環境 | Operating temperatures: Ambient with air -30°C to 60°CStorage temperatures: -30°C to 70°CRelative humidity: 10% to 90% (non-condensing)Vibration (random): 2g @5~500Hz
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers= 20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment= 75g |
操作系統 | WES2009WES 7EWin7 Pro Embedded |
標準和通過認證 | CE approval, FCC Class BCE EN 60950-1 LVD |
